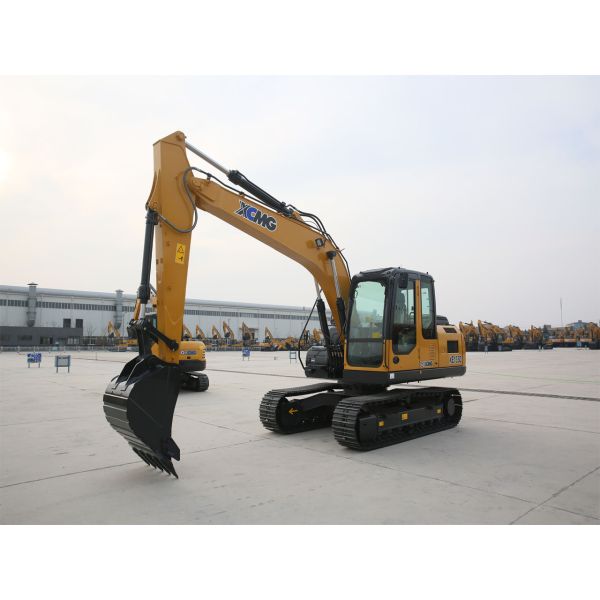

New condition Mini excavator machinery XCMG 13T excavator XE135D
Product selling point:
Advanced XCMG excavator intelligent management system XEICS;
Prevent comfortable and safe new cab;
Low-speed atmospheric pressure and high-pressure common rail engine, new power matching mode, improved power optimization and fuel economy;
The maintenance is convenient and fast, and the maintenance period of the engine filter element is extended;
The strengthened slewing mechanism is more coordinated with the action, with less impact and longer life.
specification:
| | Unit | XE135D |
| Operation weight | Kg | 13800 |
| Bucket capacity | m3 | 0.4-0.52 |
| rotated power | kw/rpm | 69.6/2200 |
| output | L | 4.329 |
| Travel speed | km/h | 5.16/3.03 |
| Swing speed | r/min | 12.3 |
| Max.gradeability | ° | 35 |
| Ground Pressure | kPa | 42 |
| Bucket digging force | kN | 85 |
| Arm crowd force | kN | 65 |
| Max traction force | kN | 134 |
| Fuel tank capacity | L | 250 |
| Hydraulic tank capacity | L | 130 |
| Engine Lubrication | L | 14 |
| A Overall length | mm | 7770 |
| B Overall width | mm | 2512 |
| C overall Weight | mm | 2880 |
| Doverall width of upperstructure | mm | 2512 |
| E Track width | mm | 3660 |
| F overall width of undercarriage | mm | 2590 |
| G Standard track shoe width | mm | 500 |
| Htrack length on ground | mm | 2910 |
| I Track gauge | mm | 1990 |
| J Clearance under counter weight | mm | 964 |
| K Ground clearance | mm | 478 |
| L Tail swing radiu | | 2294 |
| A Max digging height | mm | 8641 |
| B Max dumping height | mm | 6181 |
| C Max digging depth | mm | 5538 |
| D Max vertical wall digging depth | mm | 4727 |
| E Max digging reach | mm | 8296 |
| F Min swing radius | mm | 2335 |
