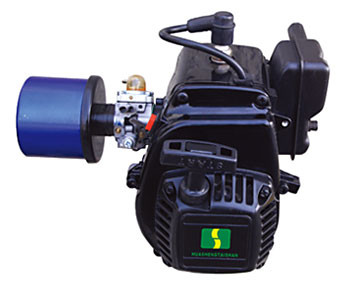

Lightweight Sinotruk Spare Parts Special Gasoline Engine For Aircraft / Ship Model

  • 1
  • 2
  • 3

Brand Name : SHMC

Model Number : 1E series

Certification : CE ISO EPA

Place of Origin : China

MOQ : 1

Emission standard : EPA 3 & EURO 2

POWER : Gasoline

Apply : model & small machine

type : air-cooled 2-stroke

Contact Now

The description of Model gasoline engines’ characteristics:
Since 1998 involved in the field of model gasoline engine, we have developed more than a dozen varieties of specifications of the two-stroke gasoline engine in air model, ship (sea) model and car model. It has become a series.
The engine uses aluminum alloy, and the majority of fans at home and abroad are attracted by it is small size, light weight, strong power output, high speed large torque and so on.

1E34Fcm

Lightweight Sinotruk Spare Parts Special Gasoline Engine For Aircraft / Ship Model

NAME specifications
Type Single Cylinder Air-Cooled 2-Stroke
Model 1E34Cm
Discharging Capacity(mL) 25.4
Max power/speed(kW/r/min) 1.5/10000
Fuel Consumption Rate(g/Kw·h) ≤790
Max torque/speed(N·m/r/min) 1.5/8500
Idle speed(r/min) 3500±150
Fuel 90# gasoline
Lubricant FC Two Stroke Gasoline Engine Oil
Gasoline And Oil Volume Mixing Ratio 25:1 Before 10 Hours :30:1 After 10 Hours
PlugGap(mm) 0.5～0.7
STARTING SYSTEM RECOIL STARTER
PlugModel NGK CM-6
Carburetor Type Diaphragm Type
Ignition CDI
Rotation Direction Levorotatory (look from the output side)
Net Weightkg) 1.1
External Dimension(mm) 157×192×165
Executive Standard JB/T5135·3－2001

1E34Fcm-2

Lightweight Sinotruk Spare Parts Special Gasoline Engine For Aircraft / Ship Model

NAME
Engine Type Single Cylider Air-Cooled 2-Stroke
Model 1E34FCm-2
Discharging Capacity (mL) 25.4
Bore * Stroke (mm) 34×28
Max Power/Speed 1.3/10000
Mini No-Load Ssteady Speed (r/min) 3000±150
Max Power/Speed(N·m/r/min) 1.4/8500
Fuel Consumption Rate (g/kWh) ≤790
Fuel 90#
Lubricant FC Two Stroke Gasoline Engine Oil
Gasoline And Oil Volume Mixing Ratio 30:1
Spark Plug Model NGK CM-6
Gap (mm) 0.5～0.7
Carburettor Type Diaphragm Type
Ignition Mode CDI
Rotation Direction LEFT(SEE FROM THE OUT-PUT POINT)
Starting Way External Motor Friction Or Hand Start
Net Weight(kg) 1.1
Outline Dimensions (mm) 157×192×165
Executive Standard JB/T5135·3－2001

1E37Fcm

Lightweight Sinotruk Spare Parts Special Gasoline Engine For Aircraft / Ship Model

NAME specifications
Type Single Cylinder Air-Cooled 2-Stroke
Model 1E37FCm
Discharging Capacity(mL) 30
Bore × Strokemm) 37×28
Max power/speed(kW/r/min) 1.3/10000
Idle speed(r/min) 4500±150
Max torque/speed(N·m/r/min) 1.5/8500
Fuel Consumption Rate(g/kWh) ≤900
Fuel 90# gasoline
Lubricant FC Two Stroke Gasoline Engine Oil
Gasoline And Oil Volume Mixing Ratio 30:1
Plug Model CMR7H
GAP(mm) 0.5～0.7
Carburetor Type Diaphragm Type
Ignition Electronic ignition
Rotation Direction Levorotatory (look from the output side)
Starting method recoil type
Net Weight(kg) ≤2.6
External Dimension(mm) 264×174×195
Executive Standard Q/LHS 010－2008

1E40Fcm

Lightweight Sinotruk Spare Parts Special Gasoline Engine For Aircraft / Ship Model

NAME specifications
Type Single Cylinder Air-Cooled 2-Stroke
Model 1E40FCm
Discharging Capacity (mL) 35
Bore * Stroke (mm) 40×28
Max power/speed (kW/r/min) 1.4/10000
Idle speed (r/min) 4500±150
Max torque/speed (N·m/r/min) 1.6/8500
Fuel Consumption Rate (g/kWh) ≤850
Fuel 90# Gasoline
Lubricant FC Two Stroke Gasoline Engine Oil
Gasoline And Oil Volume Mixing Ratio 30:1
Plug Model CMR7H
Gap (mm) 0.5～0.7
Carburetor Type Diaphragm
Ignition CDI ignition
Rotation Direction Levorotatory
Starting recoil start
Net Weight (kg) 2.6
External Dimension (mm) 264×174×195
Executive Standard Q/LHS010－2008

1E34cm

Lightweight Sinotruk Spare Parts Special Gasoline Engine For Aircraft / Ship Model

1E34Cm is a 26cc water-cooled gasoline engine to provide sea model enthusiasts, the engine of high power, high speed, large torque , it is very suitable for high-grade remote control boat toys.

NAME specifications
Engine Type Single Cylinder,Water-Cooled,2-Stroke
Model 1E34Cm
Discharging Capacity(mL) 25.4
Max Power/Speed(kW/r/min) 1.5/10000
Mini Fuel Consumption Rate(g/Kw·h) ≤790
Max Torque/Speed(N·m/r/min) 1.5/8500
Idle speed(r/min) 3500±150
Fuel 90#
Lubricant FC Two Stroke Gasoline Engine Oil
Gasoline And Oil Volume Mixing Ratio 25:1 Before 10 Hours: 30:1 After 10 Hours
Spark Plug Gap(mm) 0.5～0.7
Starting Way Hand Starting
Plug Model A7RTC
Carburetor 1E34FHm.3
Ignition Mode Electronic Ignition
Rotation Direction Levorotatory
Net weight(kg) 1.6
Outline Dimensions(mm) 181×192×142
Executive Standard JB/T5135·3－2001

DORIN (Ms)

1:mail : roadmachine@road-machine.com

2:Tel : 86+13210589366

3:Skype : 008613210589366

4:The company :SINO VEHICLE&EQUIPMENT COMPANY LTD
