26m Articulating Arm Aerial Work Platform Aerial Device Elevating Work Platform
Cherry Picker Bucket Truck
Description:
It is a high-meter-level mobile lifting work platform with a maximum operating height of 26.38 meters.
The car has excellent ductility and a larger working range, as well as an efficient and smooth working experience;
the first power self-matching energy-saving system to maximize fuel economy.
Its leading performance, precise control, safety and reliability, can meet the needs of users in construction,
bridge and equipment maintenance, shipyard, petrochemical and leasing industries.
Product performance advantages and features:
1. The maximum horizontal extension is 18.9 meters, which realizes the multi-directional positioning function and efficiently reaches the working space.
2. The vehicle is equipped with No. 1 arm, No. 2 arm and crank arm. Through luffing, telescopic and slewing control, it can realize all-round high-altitude operation and effectively enhance the application flexibility.
3. It adopts four-wheel drive multi-mode steering, leading the industry in gradeability and flexible steering.
4. Customized valve control system, precise control of each action, effectively improve the smoothness of the action.
5. Through the flow anti-saturation design, it provides an efficient and stable compound action experience for the whole vehicle.
6. The first power self-matching energy-saving system, which reduces the comprehensive fuel consumption of each working condition by more than 30%.
Specifications:
| project | Unit | parameter |
| Overall length of the machine | mm | 11280 |
| full width | mm | 2490 |
| Overall height | mm | 3000 |
| wheelbase | mm | 3000 |
| maximum working height | m | 26.38 |
| maximum platform height | m | 24.38 |
| Maximum working range | m | 18.9 |
| Maximum carrying weight | kg | 230 |
| One arm luffing range | ° | —1~ 70 |
| Two arm luffing range | ° | —35~ 68 |
| crank arm luffing range | ° | —60~ 68 |
| Turntable rotation angle | ° | 360 continuous |
| maximum tail swing | mm | 1330 (arm lift) |
| Platform size | mm | 2440×900×1150 |
| Platform rotation angle | ° | 180 |
| Total Weight | kg | 17800 |
| top speed | km/h | 5 |
| Minimum turning radius | m | 3.92 (two turns) / 2.4 (four turns) |
| Maximum gradeability | ％ | 45 |
| engine model | - | Cummins QSF2.8 71BHP |
| Engine rated power | kW/(r/min | 53 |

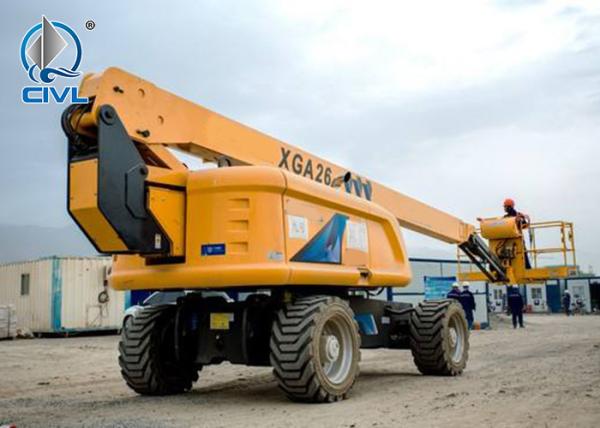

Photos
Other Construction machinery can be provide according to your request, freely contact me for the informations and quotations.
